Use Case
From the Status Quo…
Each ribbon cable receives a connector at one or both ends, which is attached using insulation displacement technology. Currently, a worker places the cut cables into a device and manually attaches the connectors. This repetitive and monotonous task is very unattractive for employees.
…to the automated solution

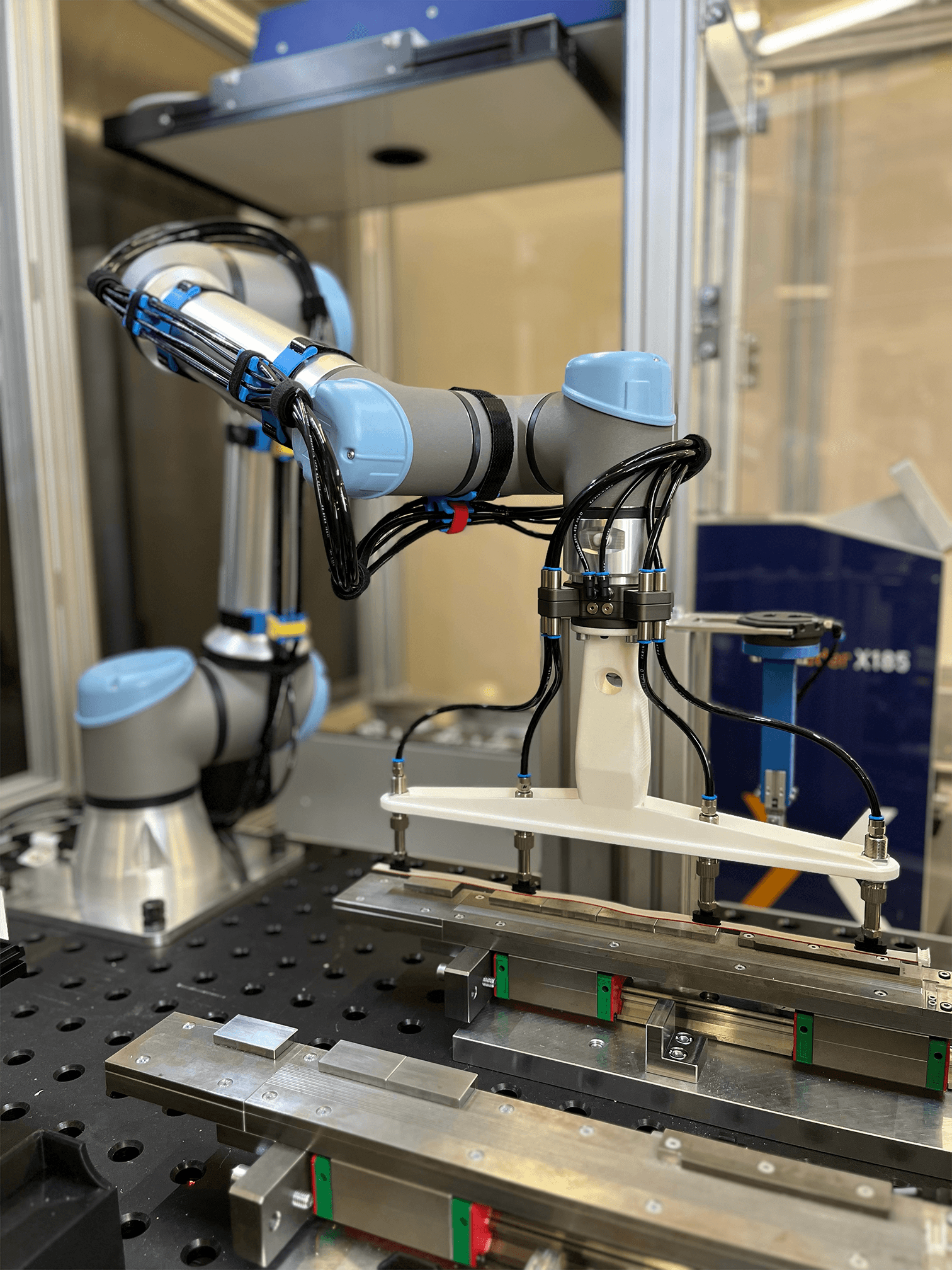

To optimize this process, we have developed an automated assembly cell for ribbon cables. The connectors are separated and positioned on the fixture by the robot. The ribbon cable is picked up by a suction gripper and inserted into the fixture. Thanks to the integrated turning station, cables with connectors facing different directions can also be assembled without the need for additional retooling.

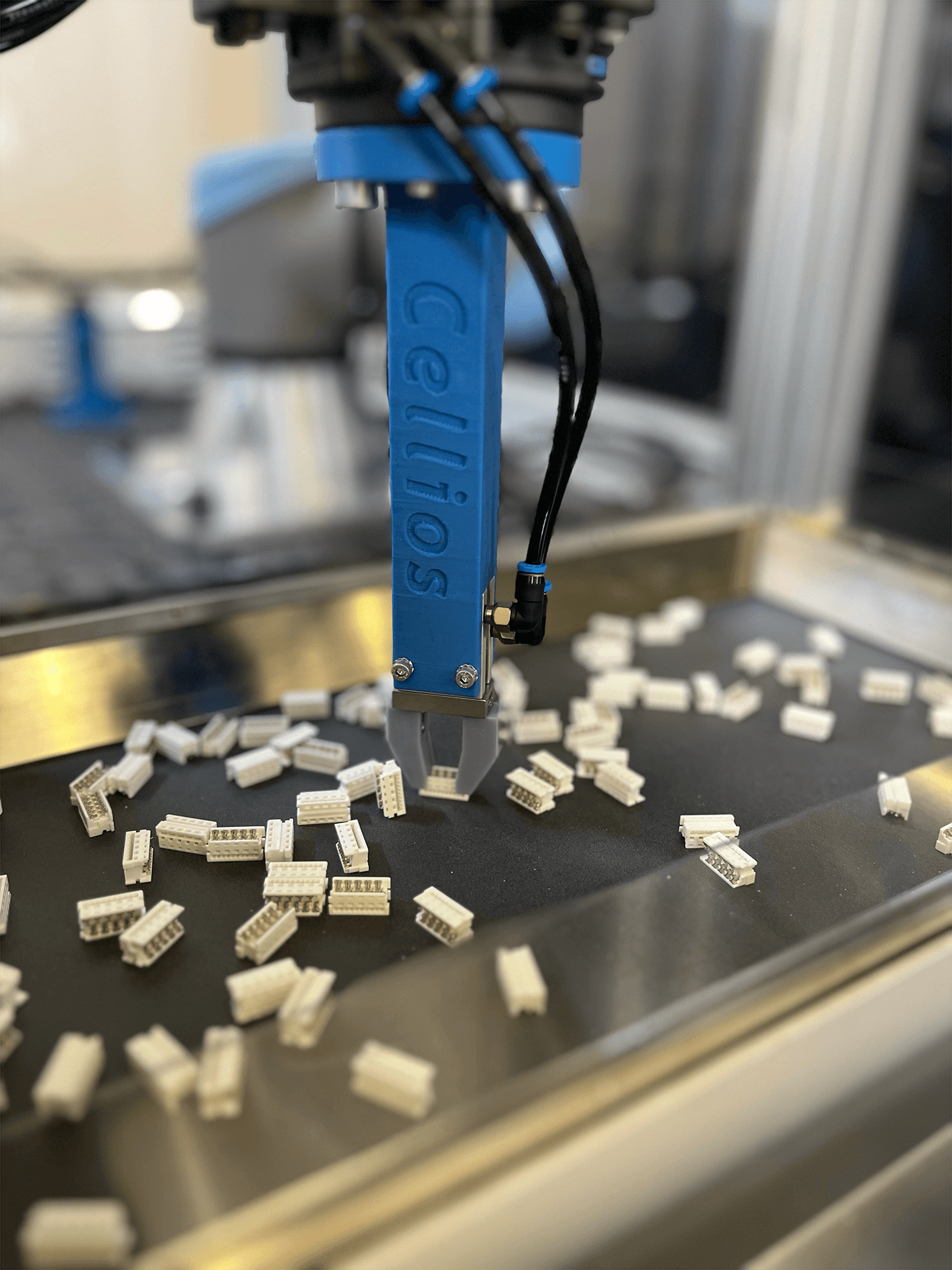

Separation of Connectors

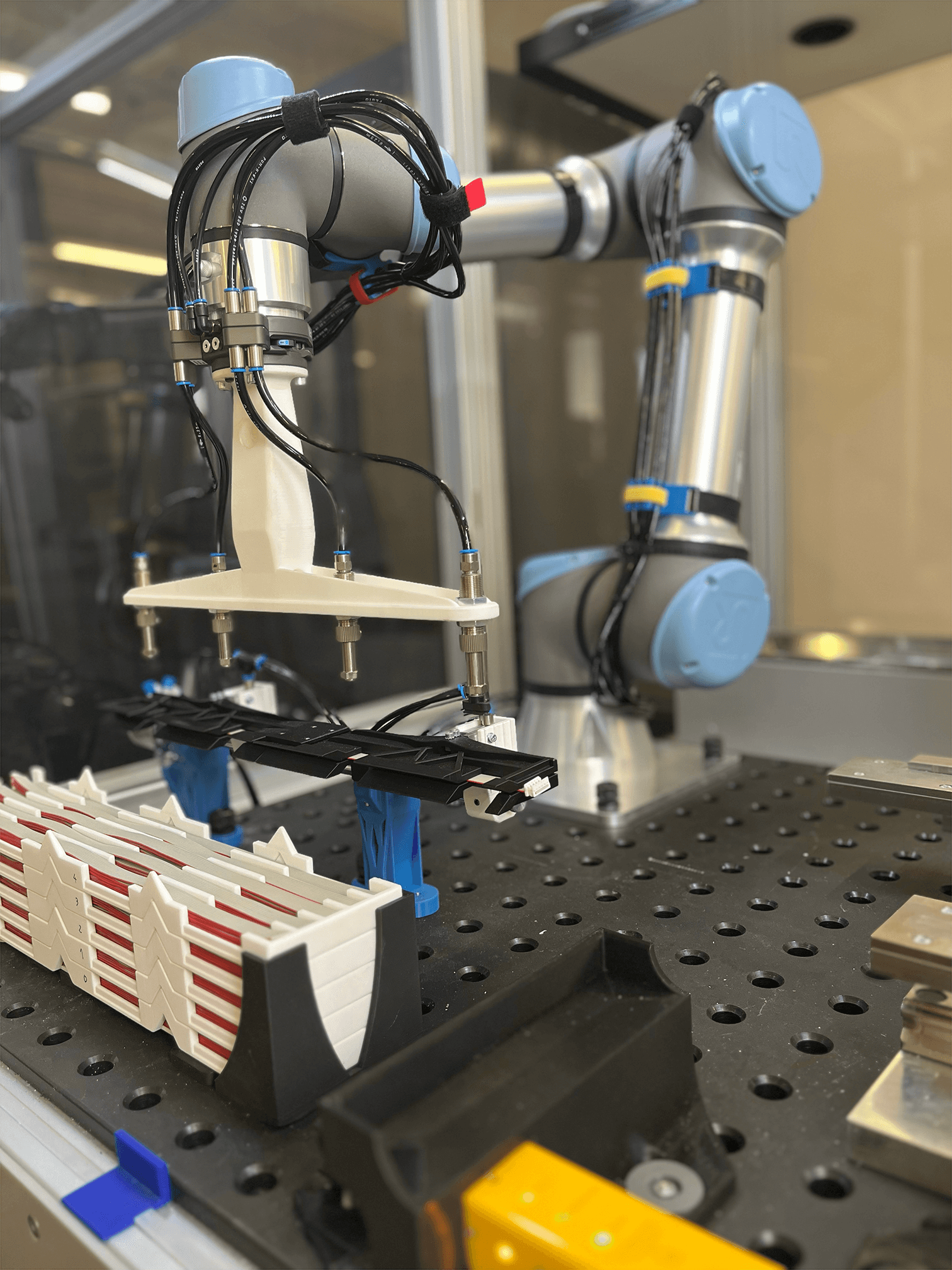

Turn station, for dual-sided, differently oriented plugging

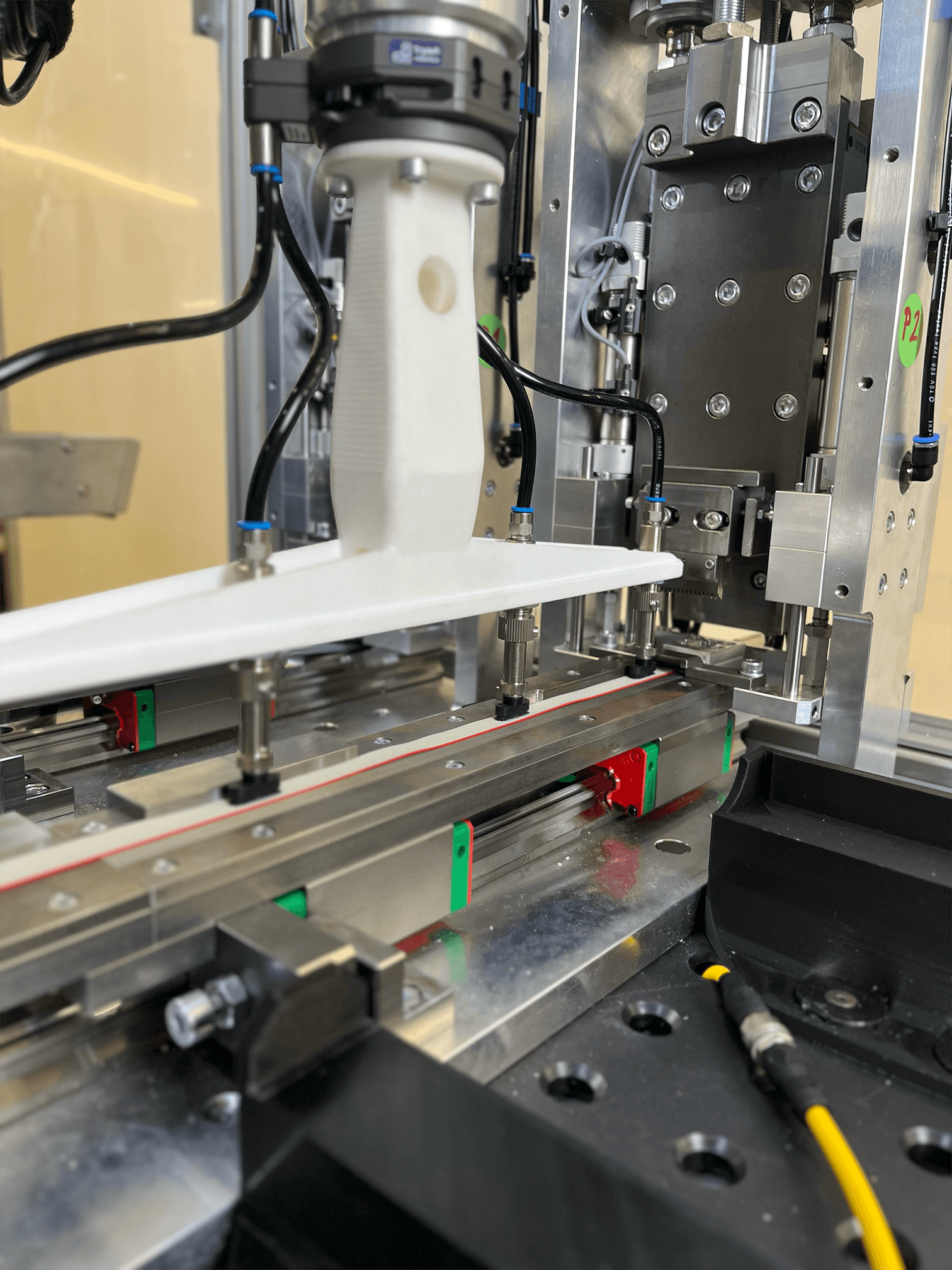

Position cable with suction gripper
